Hall Effect Sensor Kit
Hall effect sensor designed for use in applications where ferrous
edge detection/near zero speed sensing is needed. They provide a sinking current output.
Typical automotive applications include:
- Crank & Cam Signals
- Speedometers
- Anti-lock braking systems

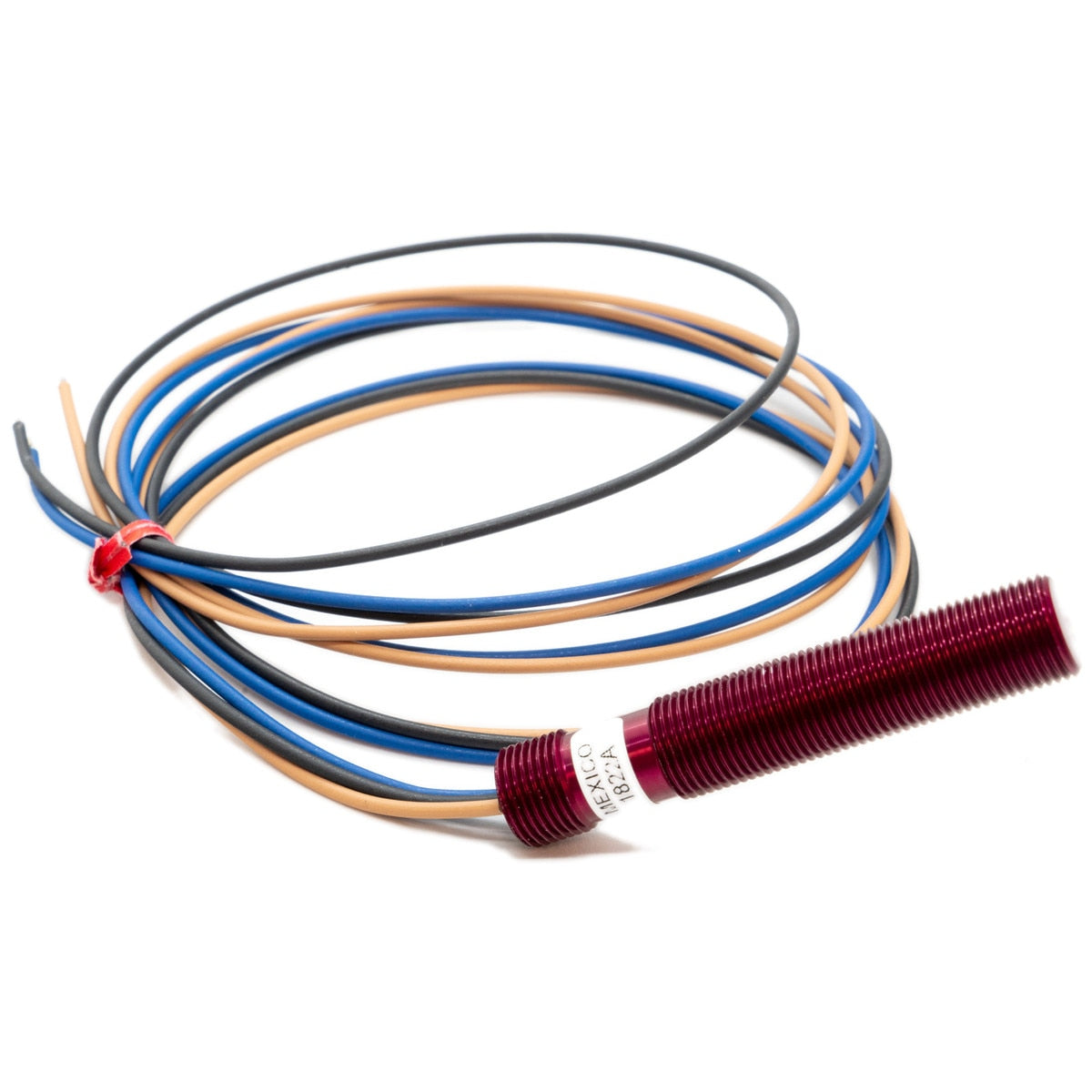

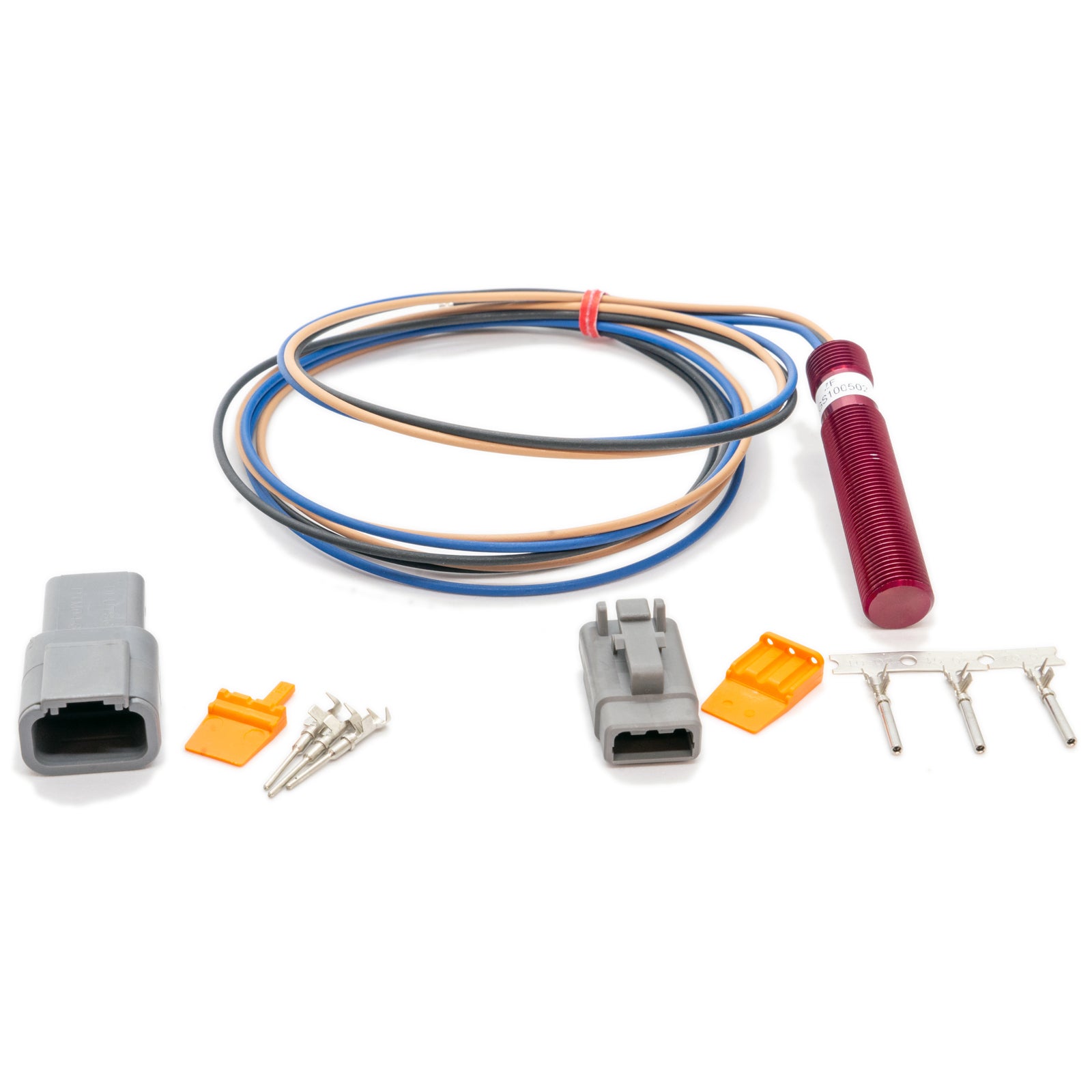

1 x Hall Effect Sensor

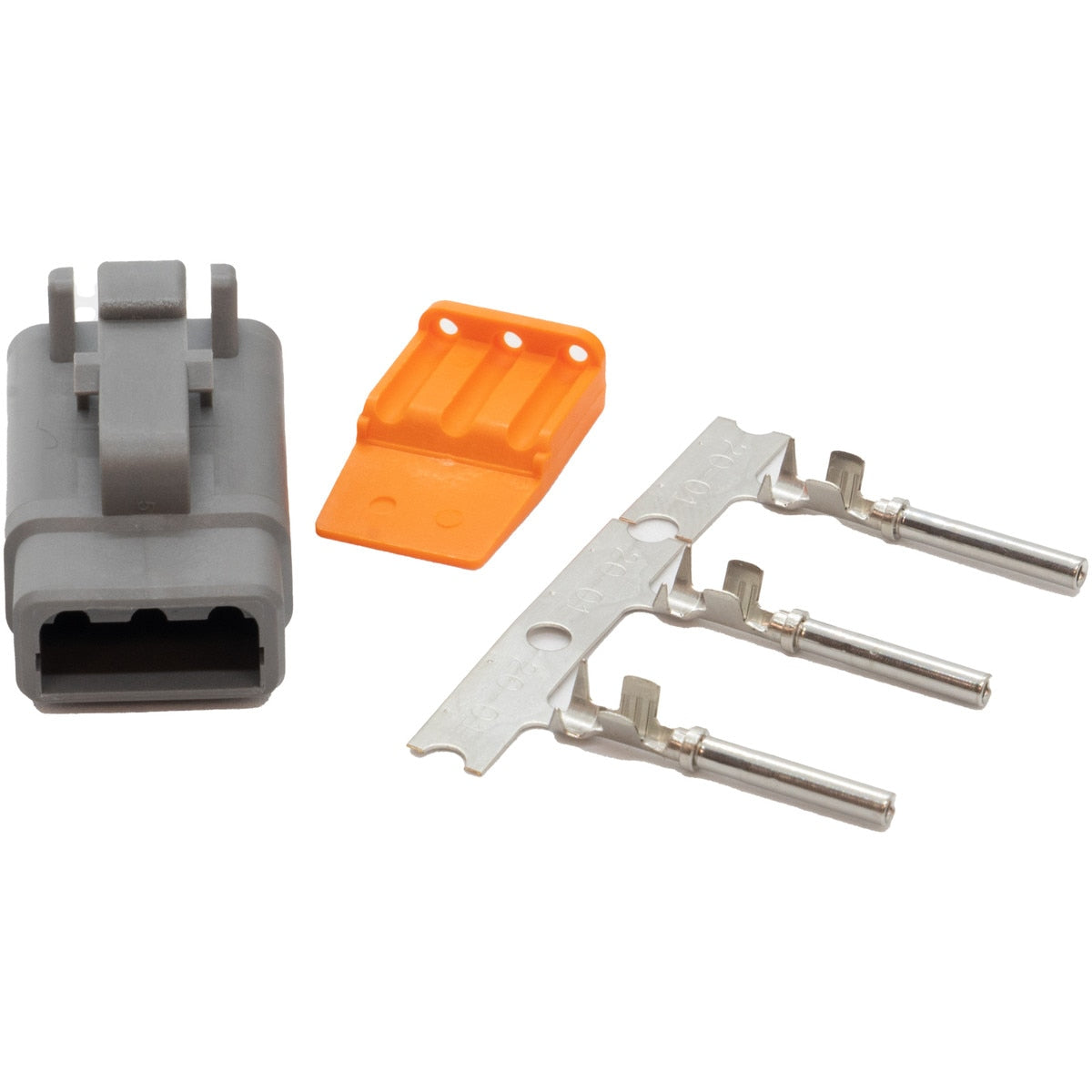

1 x DTM3 Connector Kit Set (Matching set, Male & Female connectors, pins & wedges)
- From near zero speed up to 15 kHz sensing capability
- 10 bit dynamic threshold direction offers: Automatically adjusting magnetic range, Self-compensating to target geometry
- Compatible with unregulated power supply
- RoHS compliant
- IP67
- Typical air gap of 1.5 mm
Thread = M12x1.0
Lead Length = 1m (20 AWG)
Pin Out:
Brown = Supply VCC
Blue = Ground
Black = Output V
Voltage = 5v - 24v
Max Current Draw = 6 mA
Maximum Speed Detection = 15 kHz
Maximum Installation Torque Limit = 5.65 Nm (50 in lb) on thread
Recommended External Pull-Up Resistor:
5 Volts DC = 1k Ohms
9 Volts DC = 1.8k Ohms
12 Volts DC = 2.4k Ohms
15 Volts DC = 3k Ohms
24 Volts DC = 3k Ohms
Operating Supply Voltage = 5 to 24 VDC
Maximum Input Voltage = 30 VDC
Maximum Reverse Voltage = 24 VDC
Supply Current = 3 mA typ., 6 mA max
Output Sink Current = 20 mA max
Housing Material = Anodized Aluminum
Operating Temperature = -40 °C to 125 °C
Ingress Protection = IP67
Sensor Length = 65.5mm (2.58 inches)
For best results, we recommend targets made from low carbon cold rolled steel. Other factors that influence sensor performance include gear tooth height and width, space between the teeth, shape of the teeth and thickness of the target. As a general guideline, consider a target with minimum parameters as shown below. Note that smaller dimensions may work, but testing for the application is required.
Tooth Height - 5.0 mm (.200")
Tooth Width - 2.5 mm (.100")
Distance between Teeth - 10 mm (.400")
Target Thickness - 6.35 mm (.250")
